GL GONIO SPECTROMETER 소개
GL OPTICS 스펙트로미터 기반의 고니어미터 | |
LED 램프 및 조명 기구 등의 각도 별 광도 및 스펙트럼 데이터를 측정합니다. |
Optical HW
광학 HW

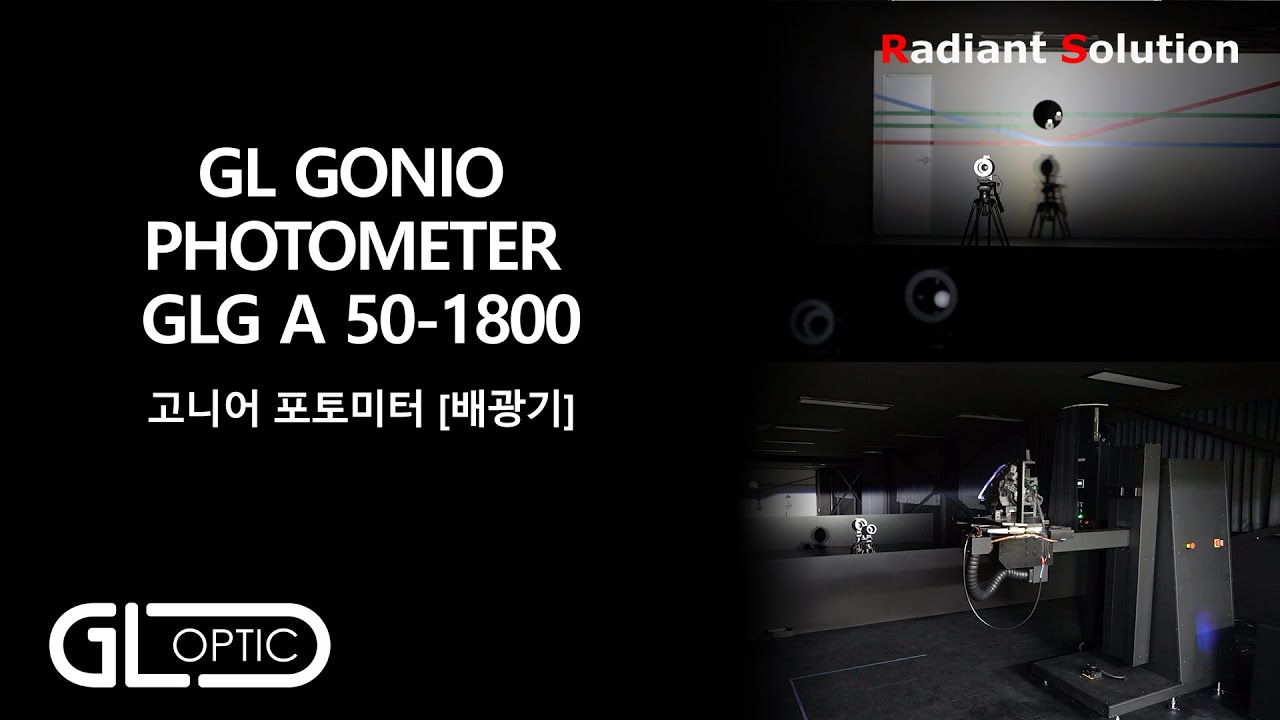

GL GONIO PHOTOMETER
GLG A 50-1800
H, V 축 좌표에서 자동차 조명 및 램프의 광특성을
측정 및 평가하는 Type A 고니어미터
Photometric Quantities
Luminous Intensity Distribution Diagrams | |
Luminous Flux | |
IEC, IES and LTD Formats | |
Centre Beam Intensity |
Colorimetric Quantities
Correlated Color Temperature – CCT and Duv | |
Color Rendering Indices – Ra, CRI, R1 to R15, TM-30 | |
MacAdam Ellipses | |
Angular Color Uniformity |
Additional / Optional
Luminous Efficacy (lm/w) | |
Power Factor | |
Temperature |
GL GONIO SPECTROMETER 소개
GL OPTICS 스펙트로미터 기반의 고니어미터 | |
LED 램프 및 조명 기구 등의 각도 별 광도 및 스펙트럼 데이터를 측정합니다. |
GL GONIO PHOTOMETER GLG A 50-1800
H, V 축 좌표에서 자동차 조명 및 램프의 광특성을 측정 및 평가하는 Type A 고니어미터
Photometric Quantities
Luminous Intensity Distribution Diagrams | |
Luminous Flux | |
IEC, IES and LTD Formats | |
Centre Beam Intensity |
Colorimetric Quantities
Correlated Color Temperature – CCT and Duv | |
Color Rendering Indices – Ra, CRI, R1 to R15, TM-30 | |
MacAdam Ellipses | |
Angular Color Uniformity |
Additional / Optional
Luminous Efficacy (lm/w) | |
Power Factor | |
Temperature |
Technical Data | CIE Goniometer type | Far Field Type A compliant with IES LM-75-01 and CIE 121-1996. 5 axis servo motors with absolute position encoders |
H axis movement | Angular range ± 100°. Nominal torque 555Nm. Speed up to 10 °/s | |
H axis resolution | 0.002° | |
H axis reproducibility | 0.05° | |
V axis movement | Angular range ± 180°. Nominal torque 98Nm. Speed up to 50 °/s | |
V axis resolution | 0.002° | |
V axis reproducibility | 0.05°* | |
Z axis movement | Linear range 0-800mm. Lifting capability up to 1500N | |
Z axis reproducibility | 70 μm | |
X, Y axis movement | Linear range ± 150 mm. Speed up to 40 mm/s | |
X, Y axis reproducibility | 70 μm | |
DUT mounting plate | Square 400×400 mm. Multiple M6 mounting holes | |
DUT maximum dimension | ≤ 1800 mm (symmetrically positioned) | |
Goniometer dimensions | 1990(L) x 810(W) x 2020(H) mm | |
Optical axis height | 1350 mm | |
Minimum room height | 2600 mm | |
Minimum room width | 4000 mm | |
Maximum load | 50 kg | |
Goniometer weight | 450 kg | |
Power supply | AC 110-230V, 3000 W | |
Controllers | Internal controller for all motors. PC connectivity over LAN network. Remote manufacturer support capability. 7 inch LCD touch display on the body of goniometer. Manual all axis controller for operations during DUT fixing. | |
Safety | Emergency stop button on both sides of goniometer. Optional safety devices with laser scanner or light fence. |
GLG 4-500GL GONIO
SPECTROMETER GLG 30-1800
GONIOMETER와 SPECTRORADIOMETER가 결합된 시스템으로서 최대 무게 30kg 무게, 지름 1800mm 사이즈까지의 DUT를 0.1° 각도별로 측정하는 C 타입 고니어미터
Photometric Quantities
Luminous Intensity Distribution | |
Polar Diagram | |
Cone Diagram | |
Luminous flux | |
IES and LTD Formats | |
Centre Beam Intensity |
Colorimetric Quantities
Correlated Color Temperature – CCT and Duv | |
Color Rendering Indices – Ra, CRI, R1 to R15, TM-30 | |
MacAdam Ellipses | |
Angular Color Uniformity |
Other Quantities
Luminous Efficacy (lm/w) | |
Power Factor | |
Temperature |
GLG 4-500GL GONIO SPECTROMETER GLG 30-1800
GONIOMETER와 SPECTRORADIOMETER가 결합된 시스템으로서 최대 무게 30kg 무게,
지름 1800mm 사이즈까지의 DUT를 0.1° 각도별로 측정하는 C 타입 고니어미터
Photometric Quantities
Luminous Intensity Distribution | |
Polar Diagram | |
Cone Diagram | |
Luminous flux | |
IES and LTD Formats | |
Centre Beam Intensity |
Colorimetric Quantities
Correlated Color Temperature – CCT and Duv | |
Color Rendering Indices – Ra, CRI, R1 to R15, TM-30 | |
MacAdam Ellipses | |
Angular Color Uniformity |
Other Quantities
Luminous Efficacy (lm/w) | |
Power Factor | |
Temperature |
Technical Data | CIE Goniometer type | Far Field Type C with horizontal optical axis • DUT moving • 3 axis stepper motors with worm drive axis |
Angular range C axis | ± 180° | |
Angular range Y axis | ± 180° theoretical (usable depending on geometry due to shadowing) | |
Angular positioning precision | 0.1° | |
Reproducibility C axis | 0.004° | |
Reproducibility γ axis | 0.004° | |
Angular speed C axis | up to 45°/s | |
Angular speed γ axis | up to 45°/s | |
DUT photometric center positioning | 0 to 700 mm stepper motor operated | |
Photometric distance | 9 m – 27 m Distance >= largest DUT dimension x (5 to 15) (CIE_S025/E:2015) | |
DUT mounting plate (bread board) | • Round d=180 mm • Fixing: Multiple mounting holes: M3, M4, M5, M6 • Chuck with sliding blocks | |
Maximum DUT dimension | ≤ 1800 mm (diameter or diagonal) | |
Goniometer dimensions | 1950(L) x 750(W) x 1650(H)mm | |
Maximum operating footprint diameter | 2400 mm | |
Maximum load | 30 kg | |
Goniometer weight | 80 kg | |
Power supply and max. consumption | PC connection by USB A-B; | |
Sensor type | GL OPTIC Spectrometer range: • GL Spectis 1.3 LS (recommended) • GL Spectis 1.0 Touch • GL Spectis 1.0 Touch + Flicker GL Spectis 5.0 Touch, GL Photometer |
GL GONIO SPECTROMETER
GLG 4-500
GONIOMETER와 SPECTRORADIOMETER가 결합된 시스템으로서 4~7kg 무게, 지름 500mm 사이즈까지의 DUT를 0.1° 각도별로 측정하는 C 타입 고니어미터
Photometric Quantities
Light Intensity Distribution | |
Polar Diagram | |
Cone Diagram | |
Luminous Flux | |
IES and LTD Formats | |
Centre Beam Intensity |
Colorimetric Quantities
Correlated Color Temperature (White LED Light Sources) CCT and Duv | |
Color Rendering Indices (White LED Light Sources) Ra, CRI, R1 to R15, IES TM-30 2015 | |
MacAdam Ellipses | |
Angular Color Uniformity |
Additional / Optional
Luminous Efficacy [lm/w] | |
Power factor (i.e. cos θ) | |
Temperature |
GL GONIO SPECTROMETER GLG 4-500
GONIOMETER와 SPECTRORADIOMETER가 결합된 시스템으로서 4~7kg 무게,
지름 500mm 사이즈까지의 DUT를 0.1° 각도별로 측정하는 C 타입 고니어미터
Photometric Quantities
Light Intensity Distribution | |
Polar Diagram | |
Cone Diagram | |
Luminous Flux | |
IES and LTD Formats | |
Centre Beam Intensity |
Colorimetric Quantities
Correlated Color Temperature (White LED Light Sources) CCT and Duv | |
Color Rendering Indices (White LED Light Sources) Ra, CRI, R1 to R15, IES TM-30 2015 | |
MacAdam Ellipses | |
Angular Color Uniformity |
Additional / Optional
Luminous Efficacy [lm/w] | |
Power factor (i.e. cos θ) | |
Temperature |
Technical Data | CIE Goniometer type | Far Field Type C with horizontal optical axis • DUT moving • 2 axis stepper motors • Belt drive system |
Angular range C axis | ± 180° | |
Angular range Y axis | ± 180° theoretical (usable depending on geometry due to shadowing) | |
Angular positioning precision | 0.1° | |
Reproducibility C axis | 0.1° | |
Reproducibility γ axis | 0.1° | |
Angular speed C axis | up to 45°/s | |
Angular speed γ axis | up to 45°/s | |
DUT photometric center positioning | 0 to 180 mm via hand crank | |
Photometric distance | • 2.5 m – 7.5 m • Distance >= largest DUT dimension x (5 to 15) (CIE_S025/E:2015) | |
DUT mounting plate (bread board) | • Square 80 x 80 mm • Fixing: Multiple M6 mounting holes | |
Maximum DUT dimension | ≤ 500 mm (diameter or diagonal) | |
Goniometer dimensions | 530(L) x 400(W) x 470(H)mm | |
Maximum operating footprint diameter | 1100 mm (when vertical axis is fully extended) | |
Maximum load | 4 kg | |
Goniometer weight | 8 kg | |
Power supply and max. consumption | • PC connection by USB A-B • 110-230 V • 40W | |
Sensor type | GL Optic Spectrometer 계열 • GL Spectis 1.0 • GL Spectis 1.0 Touch • GL Spectis 1.0 Touch + Flicker • GL Spectis 5.0 Touch |
